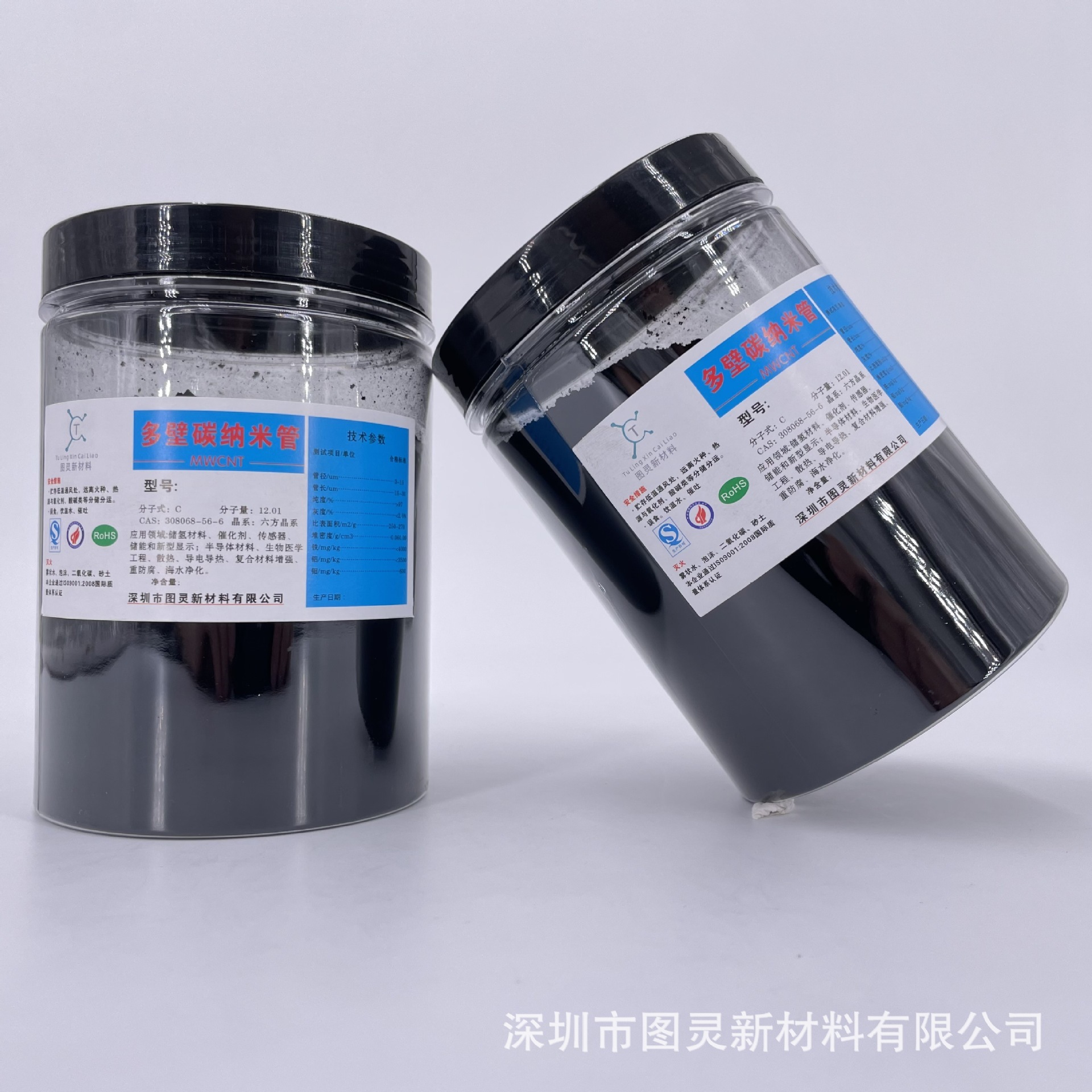

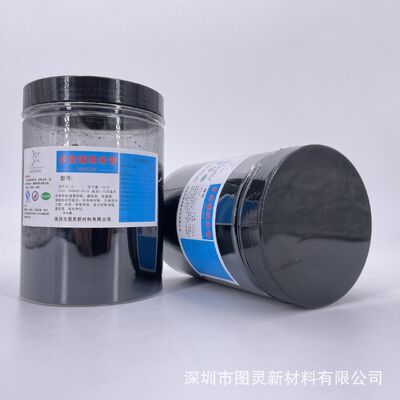

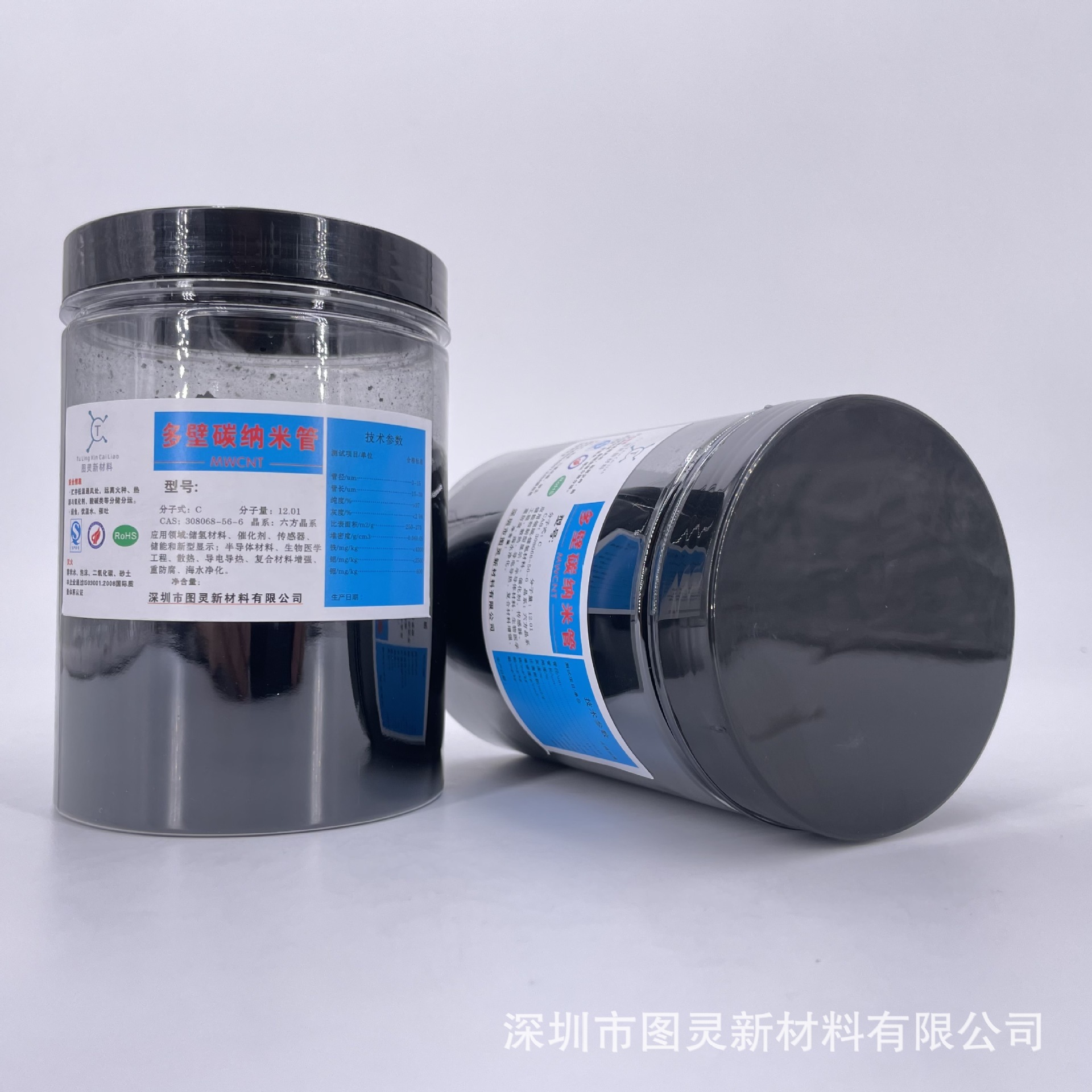

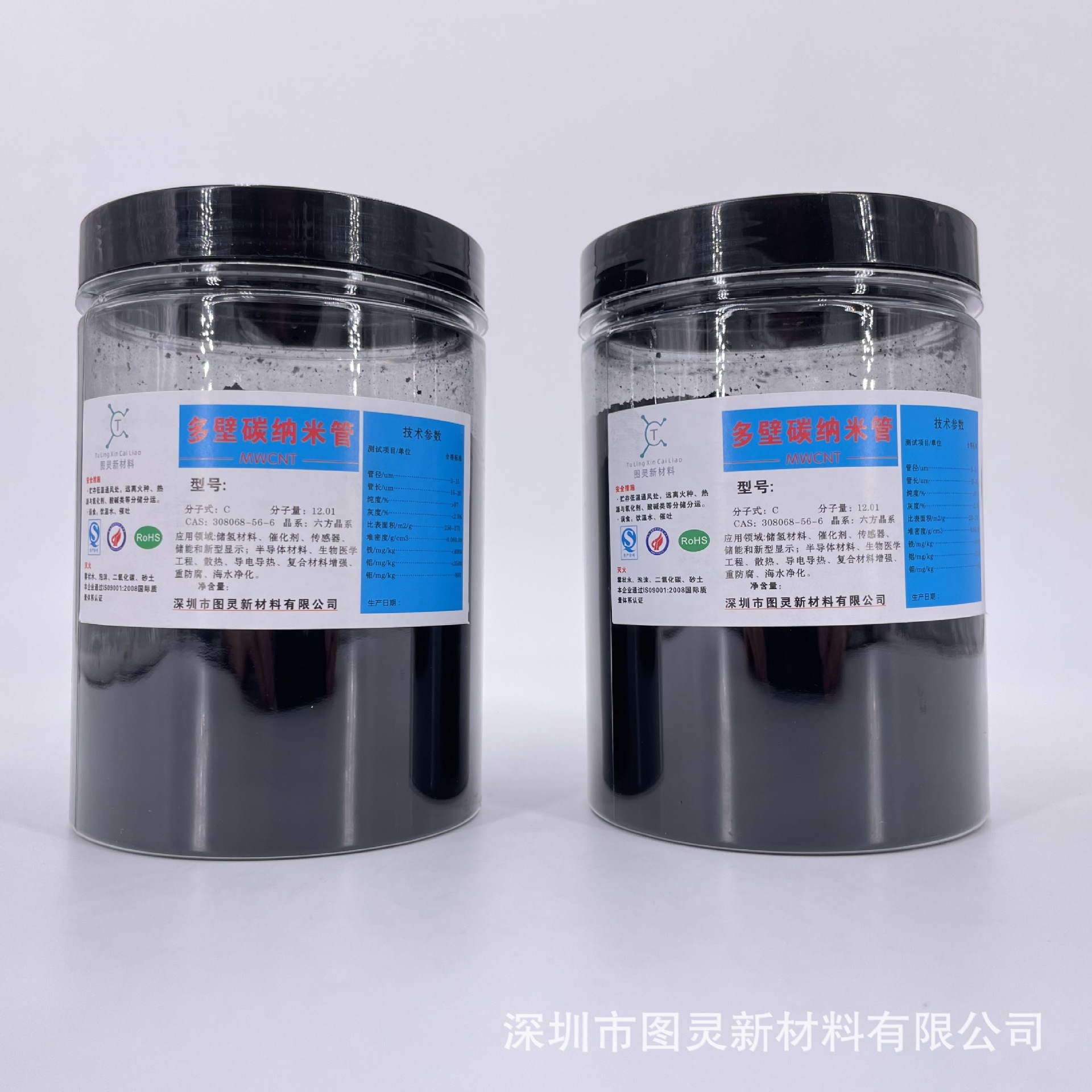

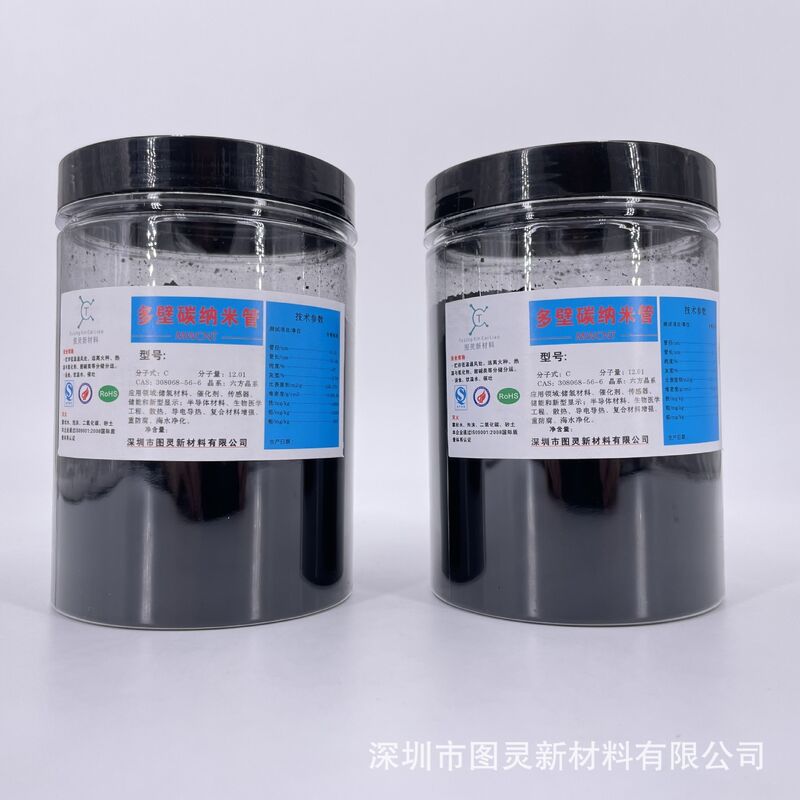

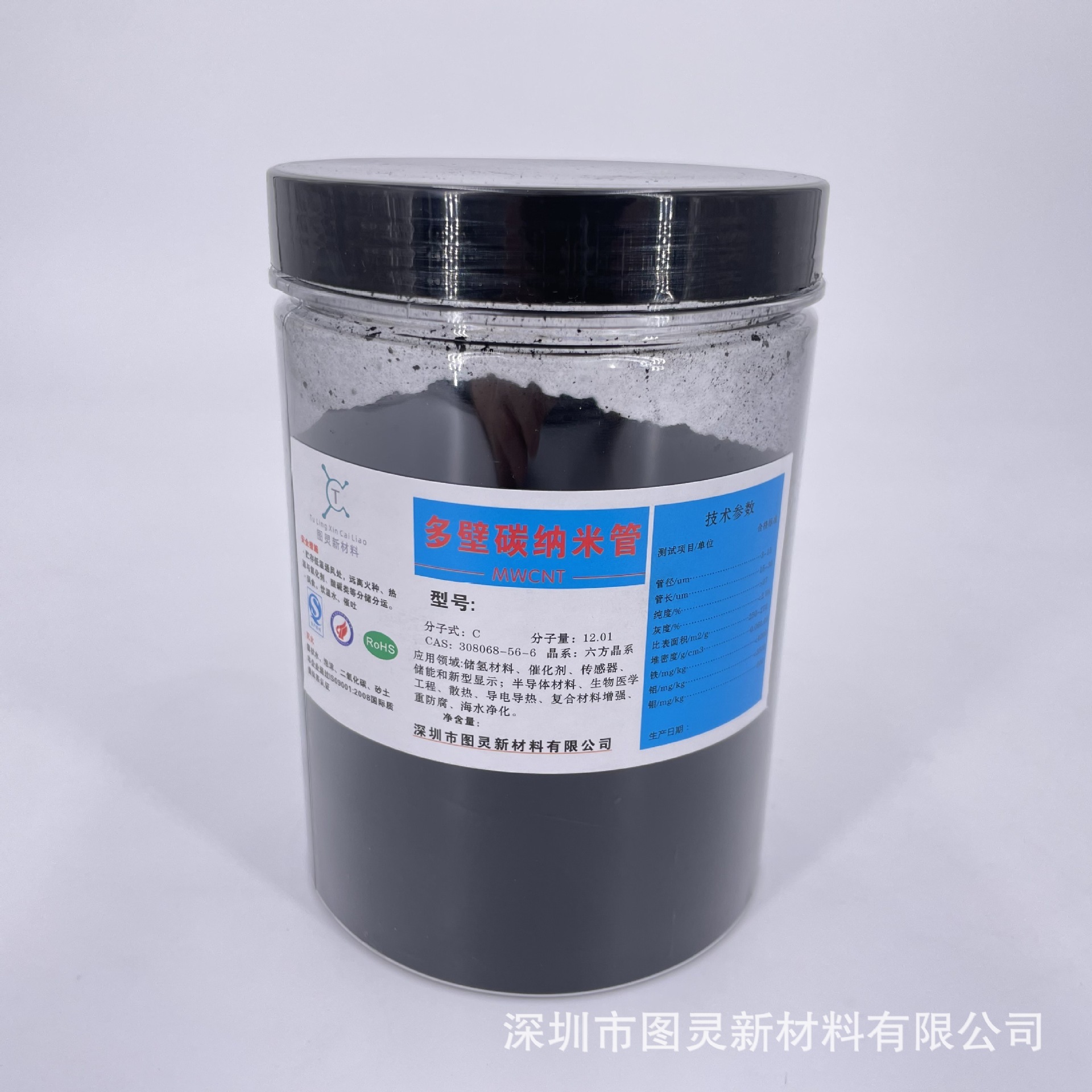

Factory direct sales of high-purity thermally and electrically conductive 97% carbon nanotubes, anti-corrosion and reinforced multi-walled carbon nanotubes

Product Details

Partial application

Multi-walled carbon nanotubes are prepared by the modified catalytic chemical vapor deposition (CCVD) method, featuring high conductivity, high specific surface area, high carbon phase purity, narrow outer diameter distribution, ultra-high aspect ratio, and stable product quality.

Multi-walled carbon nanotubes are mainly used in related industries such as rubber, plastics, lithium batteries, and coatings. In the rubber field, they are mainly applied to rubber products like tires and sealing rings, with advantages of high conductivity, high thermal conductivity, high wear resistance, and high tear resistance. In the plastic field, adding a small amount can significantly improve conductivity, thermal conductivity, and mechanical properties, and they are mainly used in plastic products such as PP, PA, PC, PE, PS, ABS, unsaturated resins, and epoxy resins.

Conductivity: 80-100 mΩ·cm (four-probe method)

Carbon nanotubes are another allotrope of carbon discovered after C60. Their radial size is small; the outer diameter of the tube is generally a few nanometers to tens of nanometers, and the inner diameter of the tube is even smaller, with some being only about 1nm. Their length is generally on the micrometer scale, and the ratio of length to diameter is very large, reaching 10³ to 10⁶. Therefore, carbon nanotubes are considered a typical one-dimensional nanomaterial. Since their discovery by humans, carbon nanotubes have been hailed as the material of the future and are one of the frontier fields of international science in recent years. Professor Alex Zettl from the University of California, Berkeley, believes that when comprehensively comparing C60 and carbon nanotubes in terms of application prospects, C60 can be summarized in one page, while carbon nanotubes would require a whole book to

Introduction
Multi-walled Carbon Nanotubes and Single-walled Carbon Nanotubes
In 1985, Professor Kroto, a spectroscopist from the University of Sussex in the UK, and Professors Smalley and Curl from Rice University in the US, during their collaborative research, discovered that carbon can form highly symmetric cage-structured molecules, C60 and C70, composed of 60 or 70 carbon atoms, which are called Buckyballs. In 1991, Iijima, a scientist from NEC in Japan, first used a high-resolution tunneling electron microscope to discover a type of carbon nanotube in the cathode scar formed during the preparation of C60. This carbon nanotube has an outer diameter of 5-15 nm and an inner diameter of 2-3 nm, and is composed of only two coaxial graphite-like cylindrical surfaces stacked together. Subsequently, in 1993, Iijima and the Bethune research group simultaneously reported the synthesis of single-walled carbon nanotubes with a very simple structure. This provided experimental possibility for the theoretical prediction of the properties of carbon nanotubes, further expanded the range of carbon cluster materials, and also greatly promoted theoretical and experimental research on carbon nanotubes, making this field a global research hotspot today [1].

Characteristics
The unique structure of carbon nanotubes determines that they possess many special physical and chemical properties. The C=C covalent bonds that constitute carbon nanotubes are the most stable chemical bonds in nature, thus endowing carbon nanotubes with extremely excellent mechanical properties. Theoretical calculations show that carbon nanotubes have extremely high strength and great toughness. Its theoretical value is estimated to have a Young's modulus of up to 5 TPa, a strength about 100 times that of steel, while its weight density is only 1/6 that of steel. Treacy et al. were the first to use TEM to measure the mean square amplitude of multi-walled carbon nanotubes in the temperature range from room temperature to 800 degrees, thereby deducing that the average Young's modulus of multi-walled carbon nanotubes is approximately 1.8 TPa. Salvetat et al. measured the Young's modulus of small-diameter single-walled carbon nanotubes and derived their shear modulus to be 1 TPa. Wong et al. used atomic force microscopy to measure the average bending strength of multi-walled carbon nanotubes as 14.2 ± 10.8 GPa, while the bending strength of carbon fibers is only 1 GPa. In terms of both strength and toughness, carbon nanotubes are far superior to any other fibers and are regarded as the "super fibers" of the future.

Development Prospects
It is predicted that carbon nanotubes may become a new type of high-strength carbon fiber material, which not only has the inherent properties of carbon materials, but also the electrical and thermal conductivity of metal materials, the heat resistance and corrosion resistance of ceramic materials, the weaveability of textile fibers, and the light weight and easy processability of polymer materials. Using carbon nanotubes as a reinforcement for composite materials is expected to exhibit excellent strength, elasticity, fatigue resistance, and isotropy, and it is anticipated that carbon nanotube-reinforced composites may bring about a leap in the performance of composite materials. Research on making composites with nanotubes first began on metal matrices, such as Fe/carbon nanotubes, Al/carbon nanotubes, Ni/carbon nanotubes, Cu/carbon nanotubes, etc. The focus of research on carbon nanotube composites has now shifted to polymer/carbon nanotube composites. For example, in lightweight and high-strength materials, where carbon fibers are used as reinforcing materials, the mechanical properties of carbon nanotubes, along with their small diameter and large aspect ratio, will bring better reinforcing effects.

University customer groups

Buyer's Notice

Shopkeeper's promise

All products in our store are photographed in kind to restore their original appearance as realistically as possible. There may be slight differences due to monitor reasons!!
Our store ensures that all products are of guaranteed quality!
If you need to return or exchange the goods, if it is due to the buyer's problem, the buyer shall be responsible for the return and exchange shipping costs; if it is due to the seller's problem, we shall bear the round-trip shipping costs!

Delivery and Signing

We have stock and will ship within 24 hours. For emergencies, please contact customer service. We will try to ship on the same day. If we cannot ship due to special circumstances, we will notify the customer by phone to negotiate a better solution. Our default logistics is: Express delivery. If you need a designated logistics service, please contact customer service to explain or leave a note before placing the order. After receiving the goods, please check them carefully before signing for them. If you find any errors, please contact us immediately.

Price Description

This store offers factory-direct sales, so our product prices have an absolute advantage! We guarantee that the prices of products sold in our store are absolutely value for money. We provide our customers with products of absolute quality. All products are sold at a fixed price, no bargaining, no rounding down, and every customer is treated completely fairly.

Shopping Help

For product issues, please contact our online customer service. Generally, you can make a purchase only after the issue is clearly confirmed. Please try to use the shopping cart to make a one-time purchase to avoid duplicate shipping fees, which is more convenient for one-time settlement.
